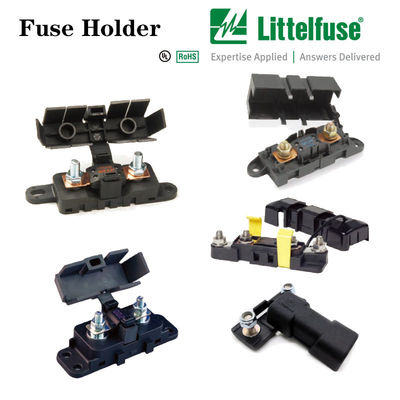

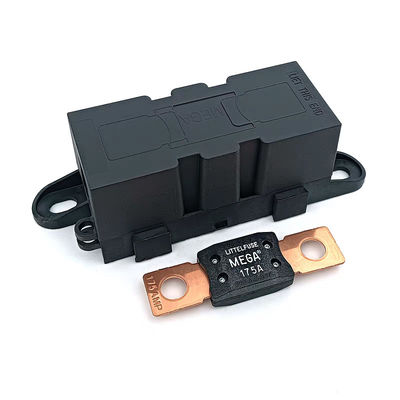

MEGA Fuse Holder Bolt-Down Series High- Current Fuse Holder High-Current Circuit Protection 02981036ZXT Bolt-Down, M6 Slots X 15MM Long

Name: MEGA Fuse Holder Bolt-Down Series High- Current Fuse Holder High-Current Circuit Protection 02981036ZXT Bolt-Down, M6 Slots X 15MM Long
Brand: Dongguan Chenglue Electronic co.,Ltd
SKU: Büyücü
Price: 3 USD
Availability: InStock

Tüm ürünler

X2 Güvenlik Kondansatörü
(85)

Y1 Güvenlik Kondansatörü
(50)

Y2 Güvenlik Kondansatörü
(27)

Metalize Polipropilen Film Kapasitör
(53)

Süper Kapasitör
(42)

Metalize Polyester Film Kapasitör
(10)

MMKP82 Kondansatör
(37)

Alüminyum Elektrolitik Kondansatör
(33)

Metal Oksit Varistör
(94)

SMD MOV Varistör
(27)

NTC Termal Direnç
(75)

NTC Sıcaklık Sensörü
(32)

Hall Etkili Akım Sensörü
(17)

Elektrikli Araç Sigortası
(24)

Gaz Tahliye Tüpü
(42)

Yüksek Voltajlı Sigorta
(88)

Seramik Termal Sigorta
(14)

Otomatik Bıçaklı Sigorta
(11)

PCB Montajlı Sigorta Sahibi
(11)

Ana Bağlantıyı Kesme Değiştiricileri
(6)

Katı Alüminyum Elektrolitik Kondansatör
(23)

Ben sohbet şimdi

MEGA Fuse Holder Bolt-Down Series High- Current Fuse Holder High-Current Circuit Protection 02981036ZXT Bolt-Down, M6 Slots X 15MM Long

Büyük resim : MEGA Fuse Holder Bolt-Down Series High- Current Fuse Holder High-Current Circuit Protection 02981036ZXT Bolt-Down, M6 Slots X 15MM Long

Ürün ayrıntıları:

Menşe yeri:	chiana
Marka adı:	littelfuse
Sertifika:	E71747
Model numarası:	Büyücü

Ödeme & teslimat koşulları:

Min sipariş miktarı:	500
Fiyat:	3USD
Ambalaj bilgileri:	200x200x200cm
Ödeme koşulları:	T/T
Yetenek temini:	300000

İletişim

MEGA Fuse Holder Bolt-Down Series High- Current Fuse Holder High-Current Circuit Protection 02981036ZXT Bolt-Down, M6 Slots X 15MM Long

Açıklama

Vurgulamak:

M6 yuvalı sigorta tutucusu

Yüksek akımlı sigorta tutucusu

Bolt Down sigorta tutucusu

MEGA Fuse Holder Bolt-Down Series High- Current Fuse Holder High-Current Circuit Protection 02981036ZXT Bolt-Down, M6 Slots X 15MM Long 0

Description

Specifications

Agency Approval Shock: VS-005002/VS-005005

Current Rating Max: 500A

Fuse Type: MEGA (298)

Humidity: 97%±3% relative humidity

at 40°C±3C for 16 hrs

Flammibility Rating: UL-94 V-2

Ingress Protection: Dust Protection

Input Terminals: M8 Stud, M6 Stud

Mounting Method: Bolt-Down, M6 Slots / M6 Mounting Holes

Output Terminals: M8 Stud, M6 Stud

Recommended Torque: 8mm Hex Nut: 12-18 Nm (106-159 IN-LBS)

6mm Hex Nut: 8-14 Nm (71-124 IN-LBS)

Max Voltage Rating: 70VDC

Features & Benefits

Compatible with MEGA® bolt-down fuses (sold

separately unless indicated)

• Glass-filled thermoplastic body houses M8 or M6 input

and output terminals

• Interlocking pins on the sides of the fuse holder let you

connect additional MEGA® 298 Bolt-Down Series fuse

holders to create a multi-fuse block

• Base styles available with M6 mounting holes or

extended M6 x 15mm slots

• Included UL 94 rated protective cover has 6 available

locations for openings to accommodate various cable

entry needs (actual openings vary by part number)

• Configurations may also include a thermoplastic tether,

insulators, ratchet fasteners and/or mounting hardware

(see part numbers for details)

Dimensions
